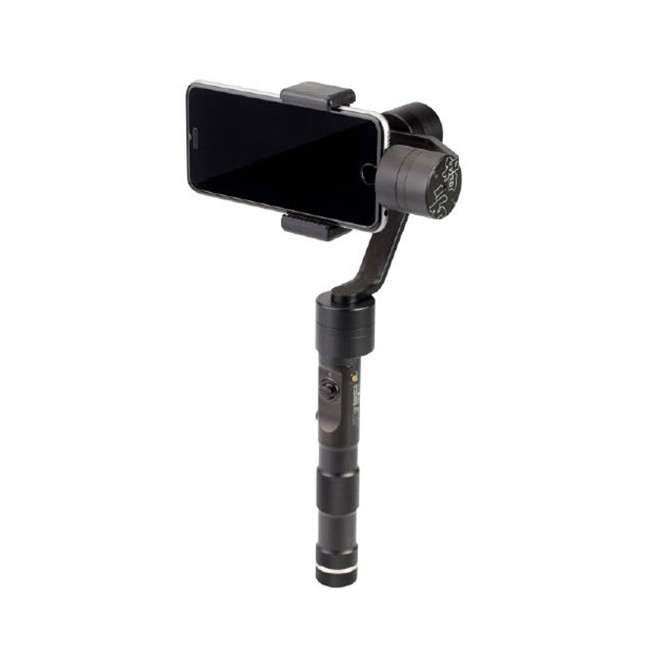

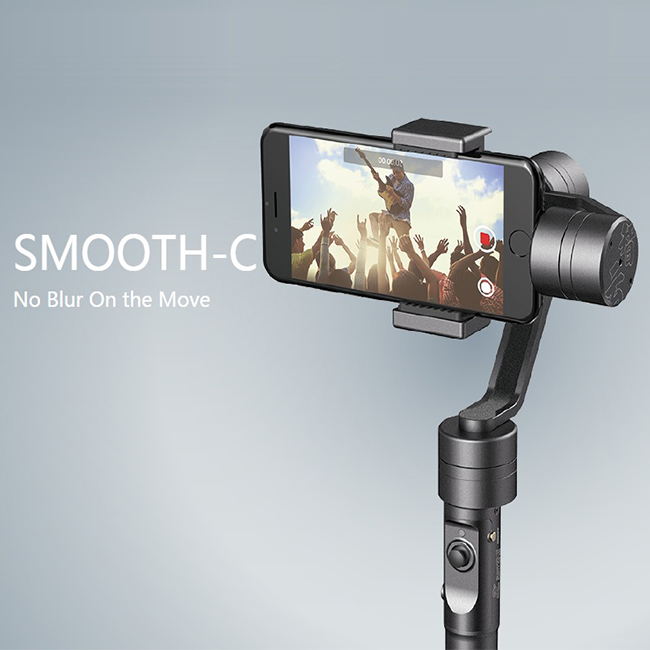

SMOOTH-C 3rd Generation Motor Control System Smart Control

No Blur On the Move

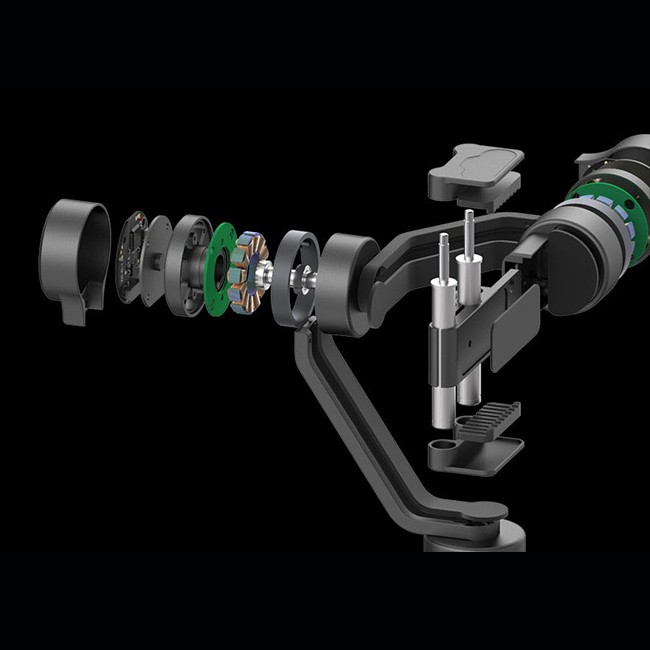

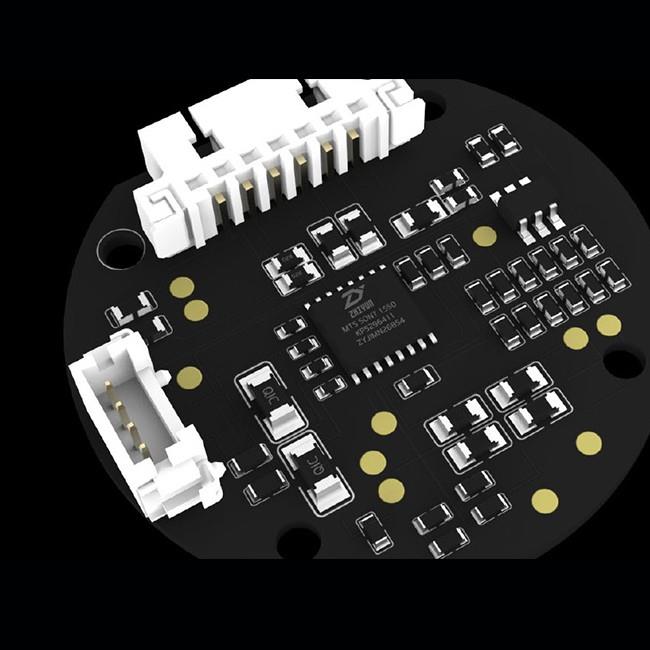

3rd Generation Motor Control System

Smart Control for Free Creativity

Faster Speed with Lower Consumption

Battery Extension Design

Specification:

Operation Voltage

Max: 12.6 v

Standard: 8.4 v

Min: 6.8 v

Operation Temperature

Max: 45 °C

Standard: 25 °C

Min: -10 °C

Battery Runtime

Max: 5 h

Standard: 4 h

Min: 3 h

Charging Time Standard: 2 h

Following Deviation in Motion State：

Max: ± 0.5 °

Standard: ± 0.2 °

Min: ± 0.1 °

Following Deviation in Static State：

Ma: ± 0.04 °

Min: ± 0.01 °

Tilt Mechanical Range：

Standard: 320 °

Roll Mechanical Range：

Standard: 270 °

Pan axis movement angle range:

Standard: 320 °

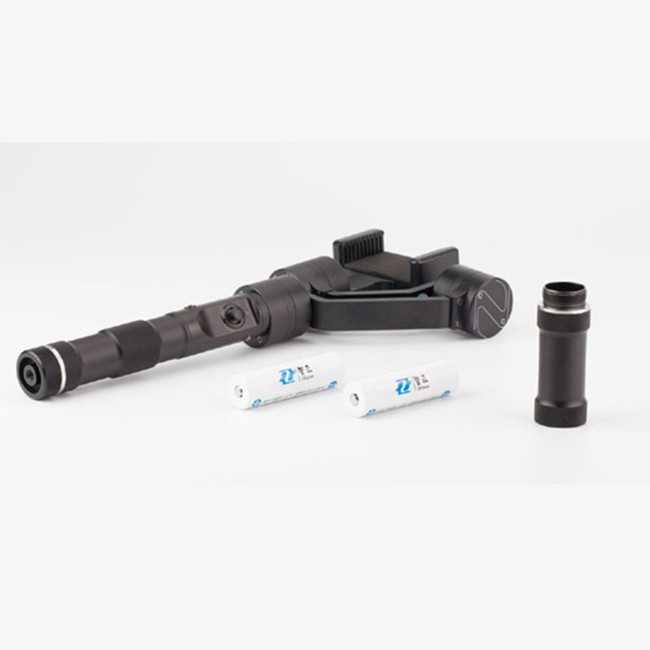

Packing List

Stabilizer1

Camera Protection Sticker1

Counter Weight1

18350 Battery Charger1

18350 Li-ion Battery2

Micro USB Cable1

User Guide1
