Evolution Designed for Most Action Cameras Unique Algorithmic System

Designed for Most Action Cameras

A Must Have for Outdoor Enthusiasts

Unique Algorithmic System

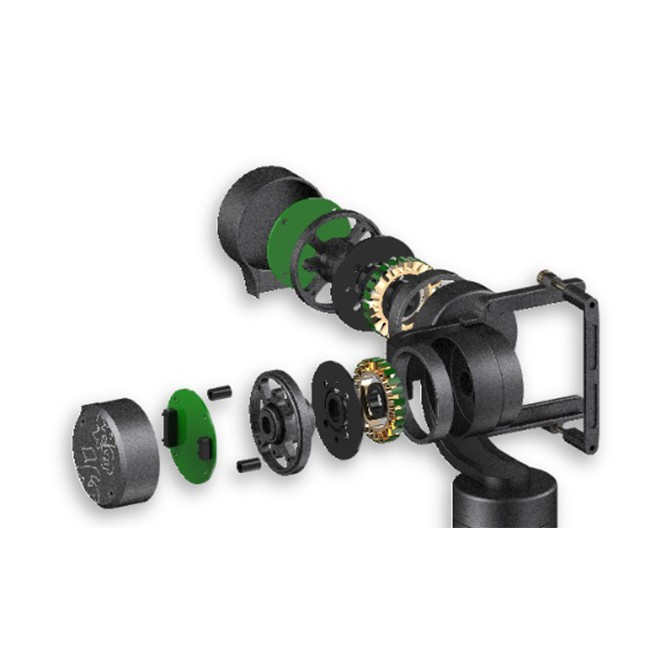

Magnet-steel Integrated Motor Construction

Synchronous Camera Charging

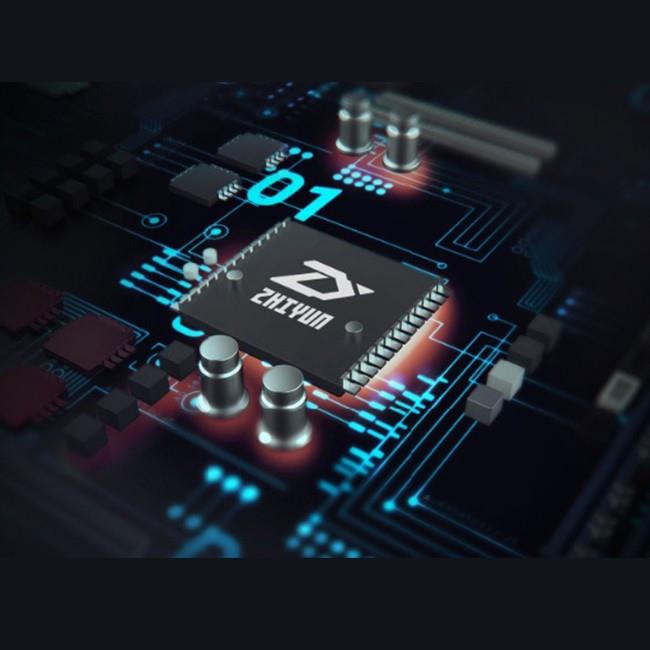

Unparalleled Data Processing Speed

Specification:

Operation Voltage

Max: 12.6 v

Min: 6.8 v

Output Voltage

Standard: 5 v

Operation Temperature

Max: 45 °C

Standard: 25 °C

Min: -10 °C

Battery Runtime

Max: 15 h

Standard: 13 h

Min: 11 h

Charging Time

Standard: 3 h

Following Deviation in Motion State：

Max: ± 0.3 °

Standard: ± 0.1 °

Min: ± 0.05 °

Following Deviation in Static State：

Max: ± 0.04 °

Min: ± 0.01 °

Tilt Mechanical Range：

Standard: 320 °

Roll Mechanical Range：

Standard: 270 °

Pan axis movement angle range:

Standard: 320 °

Valid Payload：

Max: 160 g

Following Deviation in Motion State：

Max: ± 0.3 °

Standard: ± 0.1 °

Min: ± 0.05 °

Following Deviation in Static State：

Max: ± 0.04 °

Min: ± 0.01 °

Tilt Mechanical Range：

Standard: 320 °

Roll Mechanical Range：

Standard: 270 °

Pan axis movement angle range:

Standard: 320 °

Valid Payload：

Max: 160 g

Packing List

Stabilizer1

Camera Protection Sticker1

Battery Compartment1

18650 Battery Charger1

18650 Li-ion Battery2

Micro USB Cable1

Video Output & Charging Cable (4P)1
